4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy
Product Details
| Señal de salida: | 4-20mA o RS485 | Calificación IP: | IP68 |
|---|---|---|---|
| Peso neto: | 0.3 kg | Material de diafragma: | Acero inoxidable 316L |
| Exactitud: | 00,25%, 0,5% | Rango de medición: | 0 ~ 10m ... 400m |
| Tipo de presión: | Presión de medición, presión absoluta, presión sellada | Capacidad de sobrecarga: | ≤ rango nominal 2x |
| Repetibilidad: | ± 0.03% (típ.) ± 0.05% fs (máx.) | Estabilidad a largo plazo: | ± 0,2% F.S/año (máximo) |
| Temperatura de funcionamiento: | -20 a 80 oC | Temperatura de almacenamiento: | -30 ~ 100ºC |
| Material de alojamiento: | 1Cr18Ni9Ti | Resistencia a aislamiento: | > = 100mΩ@100vdc |
| Calificación de resistencia a la explosión: | ExiaIICT6 | ||
| Resaltar |
4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||
Product Description

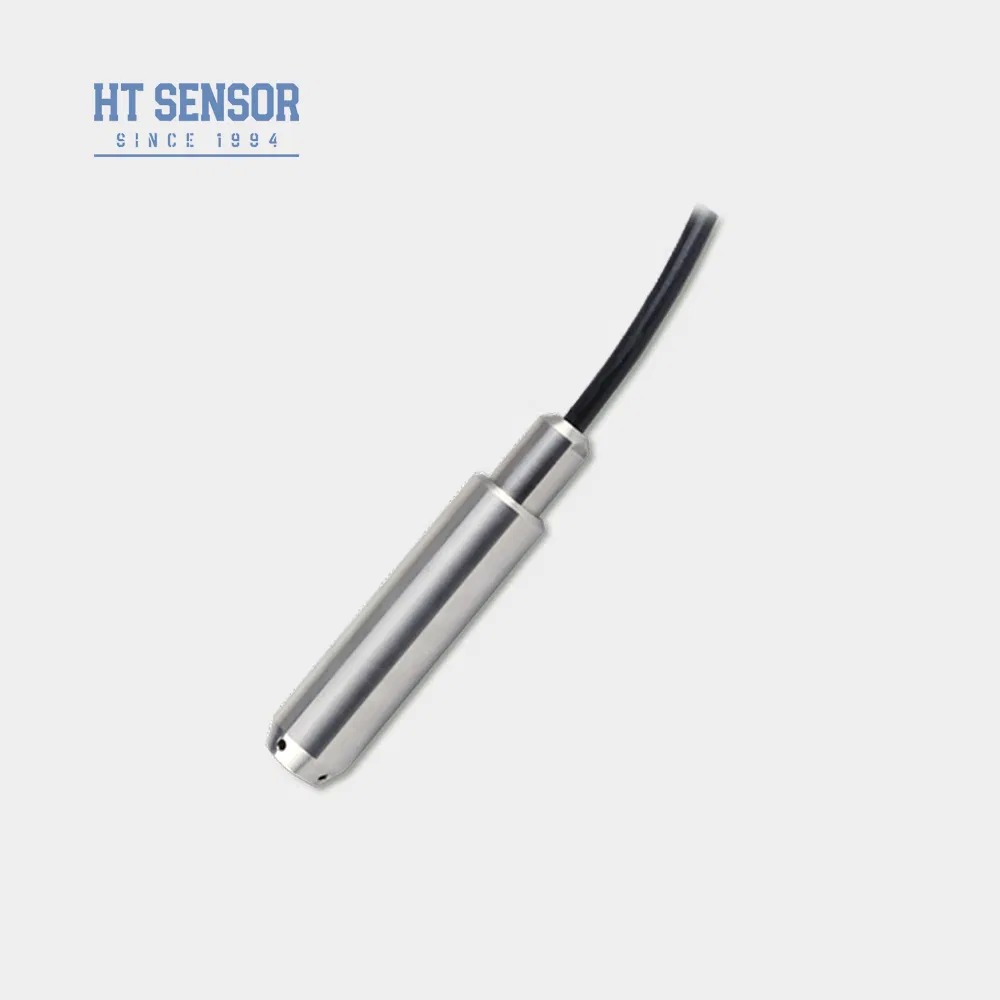

The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
