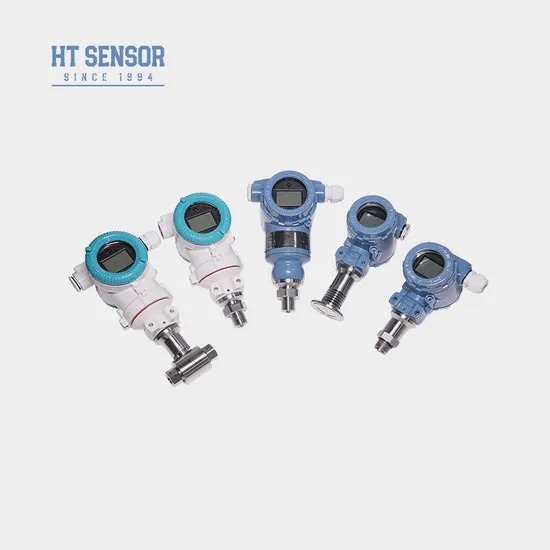

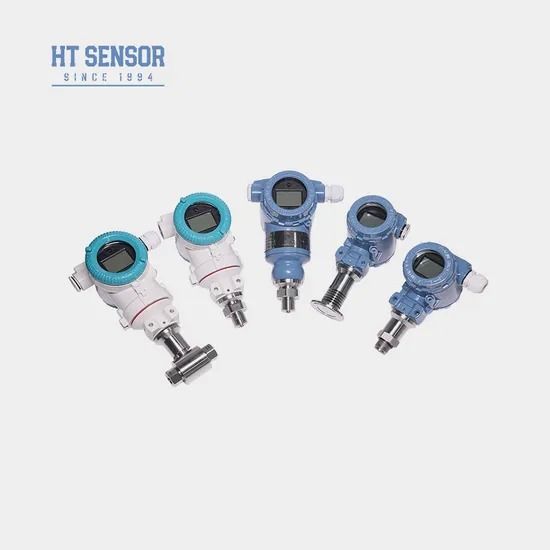

BPHT24-III LCD Pressure Sensor Transmitter 0.5G Accuracy IP65
Product Details
| Modelo No.: | Se aplican las siguientes medidas: | Medio de medición: | Líquido |
|---|---|---|---|
| Grado de precisión: | 0.5g | Rango de presión: | 0kpa~35kpa...20MPa |
| Calificación IP: | IP65 | Tipo de presión: | Presión de medición, presión absoluta, presión sellada |
| Material de alojamiento: | 316L | Peso: | 0,8 kg |
| Rango de medición: | El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef | Sobrecarga: | ≤ 1.5 veces del rango nominal |
| Precisión @ 25ºC: | ± 0.25% (típico) ± 0.5% (máximo) | Estabilidad a largo plazo: | ± 0.1%fs/año (típ.) ± 0.2%FS/año (máx.) |
| Temperatura de funcionamiento: | -20ºC ~ 80ºC | Temperatura de almacenamiento: | -40ºC ~ 120ºC |
| Resistencia a aislamiento: | 100mΩ 100vdc | ||
| Resaltar |
LCD pressure sensor transmitter,IP65 industrial pressure sensor,0.5G accuracy pressure sensor |
||
Product Description
- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean, adjustable and displayable
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.8kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure the medium to be measured is compatible with the product's contact parts
- Note that explosion-proof type products do not include digital display heads
- For transmitters with LCD/LED display, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; use EPDM for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene); specify alternative materials if needed
- Inform about special requirements (vibration, impact, EMI/RFI) when ordering
| Code | Description |
|---|---|
| BPHT24 | Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| T | High-temperature resistant Pressure Transmitter |
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service. - Q: What is your production capacity?
A: Up to 30,000 units/month. Contact sales for large orders. - Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary. - Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners. - Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for support queries.
