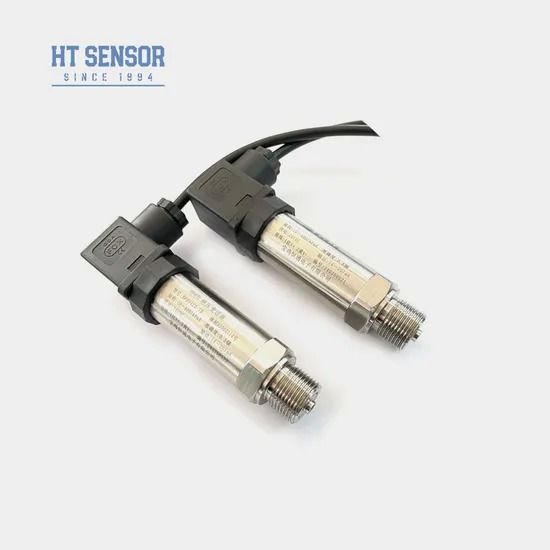

BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65

BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65
BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65
Informacion basica
Certificación: CE, RoHS, ISO9001
Cantidad de orden mínima: 1
Precio: 30
Mejor precio Contactar ahora
Información detallada
Modelo No.: BPHT24-IX Medio de medición: Aire, gas, líquido
Grado de precisión: 0.5g Rango de presión: 0kpa~35kpa...20MPa
Calificación IP: IP65 Tipo de presión: Presión de medición, presión absoluta, presión sellada
Material de alojamiento: 316L Peso: 0.2 kg
Sobrecarga: ≤ 1.5 veces del rango nominal Precisión @ 25ºC: ± 0.25% (típico) ± 0.5% (máximo)
Estabilidad a largo plazo: ± 0.1%fs/año (típ.) ± 0.2%FS/año (máx.) Temperatura de funcionamiento: -20ºC ~ 80ºC
Temperatura de almacenamiento: -40ºC ~ 120ºC Material de diafragma: 316L
Resistencia a aislamiento: 100mΩ 100vdc
Resaltar:

BPHT24-IX pressure transmitter sensor

,

industrial pressure sensor IP65

,

pressure transmitter 0.5G accuracy

Descripción de producto

HT Sensor China Factory LED Flush Diagram Silicon Piezoresistive Pressure Transmitter Sensor
BPHT24IX Pressure Transmitter

The BPHT24IX pressure transmitter utilizes the HT series flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

Product Features
  • Various pressure interface options
  • Designed for hygienic applications to prevent medium scaling
  • High accuracy with a fully stainless steel structure
  • Easy to clean and maintain
Applications
  • Suitable for measuring non-corrosive gases and liquids with 316L
  • Ideal for environmental protection and chemical industries
  • Used in the marine and aviation industries
  • Well-suited for use in the medical, biopharmaceutical, and food hygiene industries
Performance Parameters
Measurement Range 0~35Kpa…~20MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.2kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
Outline Construction
BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65 0
Ordering Tips
  • Ensure the medium to be measured is compatible with the product's contact parts
  • Note that explosion-proof type products do not include digital display heads
  • For transmitters with LCD/LED display, power supply should not be lower than 20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
  • Default cable length is 1.5m (polyethylene); specify alternative materials if needed
  • Inform about special requirements (vibration, impact, EMI/RFI) when ordering
Order Guide
BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65 1 BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65 2 BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65 3
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production scheduling.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network support available.
