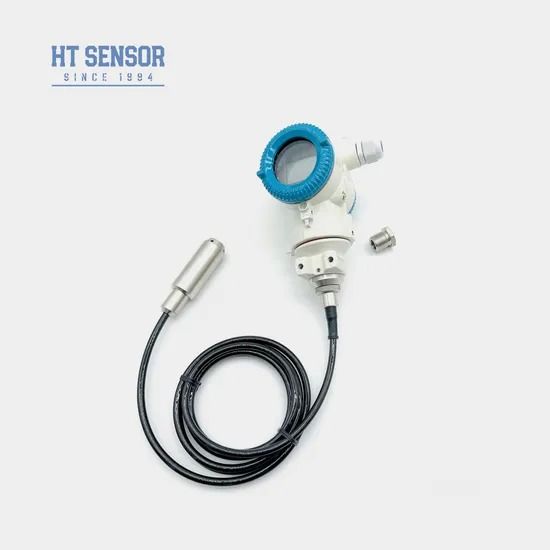

BH93420-III Water Level Transmitter 0.25% Accuracy IP68 PTFE Cable
Product Details
| Modelo No.: | BH93420-III. Los demás: | Señal de salida: | Tipo analógico |
|---|---|---|---|
| Tipo de sonda: | Tipo de sonda | Calificación IP: | IP68 |
| Peso neto: | 0.3 kg | Material de diafragma: | Acero inoxidable 316L |
| Exactitud: | 00,25%, 0,5% | Material de cable: | Se aplican los siguientes tipos de materiales: |
| Rango de medición: | 0 ~ 10m ... 400m | Tipo de presión: | Presión de medición, presión absoluta, presión sellada |
| Capacidad de sobrecarga: | ≤ rango nominal 2x | Temperatura de funcionamiento: | -20 a 80 oC |
| Temperatura de almacenamiento: | -30 ~ 100ºC | Material de alojamiento: | Aluminio fundido, 1CR18NI9TI |
| Calificación de resistencia a la explosión: | ExiaIICT6 | ||
| Resaltar |
Water Level Transmitter with PTFE cable,IP68 Water Level Transmitter,High accuracy Water Level Transmitter |
||
Product Description
The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure (directly related to water level) and converts it into standard signal output using amplification circuitry, establishing a linear relationship between output signal and liquid level for precise measurement.
- Split-type design for easy on-site wiring and calibration
- LED display
- Explosion-proof rating: ExiaIICT6
- High protection: IP68
- Cable options: PE, PU, PTFE
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
- Ensure measured medium compatibility with product components
- Specify measured medium density
- For strong electromagnetic/RF interference environments, provide details in order
- Install lightning protection devices and ensure proper grounding for reliable operation
| Code | Description |
|---|---|
| BH93420 | Liquid level transmitter |
| III | 2088 housing |
| D1 | 24VDC power supply |
| S1 | 4~20mADC output |
| S2 | RS485 output |
| B5 | 2088 with display |
| B6 | 3051A |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PE cable |
| C2 | PU cable |
| C3 | PTFE cable |
