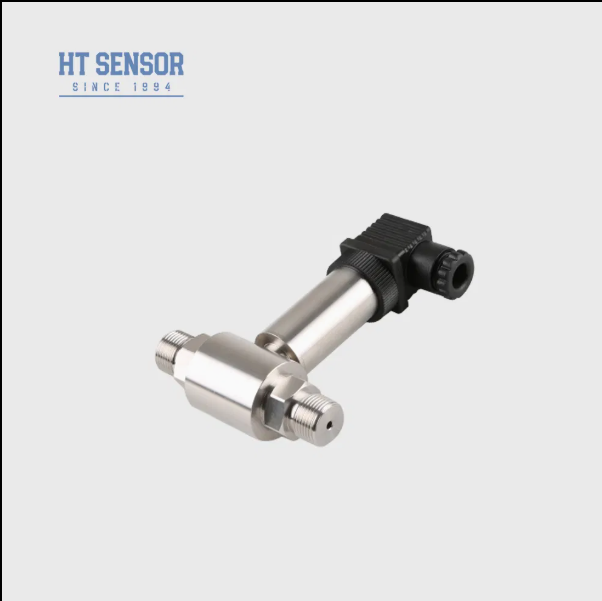

High Precision 0~2MPa Oil Filled Differential Pressure Transmitter with IP65 and 4~20mA Output
Product Details
| Resaltar |
0~2MPa Differential Pressure Transmitter,IP65 Pressure Transmitter,4~20mA DP Transmitter |
||
|---|---|---|---|
Product Description
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure acts on the sensor's corrugated diaphragms, the Wheatstone bridge output provides accurate linear measurement. Ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industries.
- Stainless steel construction for durability and compact installation
- Rigorous temperature compensation and aging screening for reliable performance
- Flexible electrical interface options (plug-in or direct wiring)
- Pipeline differential pressure measurement in petroleum, chemical, power, and hydrology industries
- Industrial process monitoring in petroleum, chemical, metallurgy, and power generation
- Pressure measurement for pipelines and furnace chambers
| Parameter | Specification |
|---|---|
| Measurement Range | 0-10KPa...~2MPa |
| Pressure Type | Differential Pressure |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Intrinsically safe |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC |
- Verify medium compatibility with product materials
- Consider installing a three-valve manifold for reliable operation
- Position pressure interfaces horizontally for optimal performance
- Specify any special environmental conditions (vibration, EMI, etc.)
| Component | Options |
|---|---|
| Model | BP93420XX (Pressure Transmitter) |
| Construction | DII (Differential Pressure Transmitter) |
| Power Supply | D1 (24VDC), D2 (5VDC), D3 (Other) |
| Output Signal | S1 (4~20mA) to S7 (0.5~4.5V) |
| Pressure Connection | J1 (M20×1.5) to J5 (Other) |
