100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch

100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch
100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch
Informacion basica
Certificación: ISO9001
Cantidad de orden mínima: 1
Precio: 80
Mejor precio Contactar ahora
Información detallada
Modelo No.: Se trata de un sistema de control de las emisiones. Estructura: Tipo de amplificador incorporado
Uso: Interruptor de control Aplicación: Vehículos comerciales, industriales
Tipo a prueba de explosiones: Intrínsecamente seguro contacto: Normalmente abierto
Tipo de contacto: Tipo c Contacto Método de detección: Tipo de correlación
Marca: - ¿ Qué es esto? Fuerza: El valor de las emisiones de CO2 de las centrales eléctricas
Producción: 0-20 mA/4-20 mA Hilo: OEM G1/2 y así sucesivamente
Diámetro: 100 mm Paquete de transporte: caja de cartón
Especificación: 10kpa~100Mpa Marca: - ¿ Qué es esto?
Origen: Porcelana Código Hs: 80328100
Capacidad de producción: 50000 PCS/año
Resaltar:

100mm differential pressure switch

,

BPZK01 level gauge switch

,

4-20mA pressure transmitter sensor

Descripción de producto

100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch
BPZK01 Electronic Pressure Switch

Introduction:

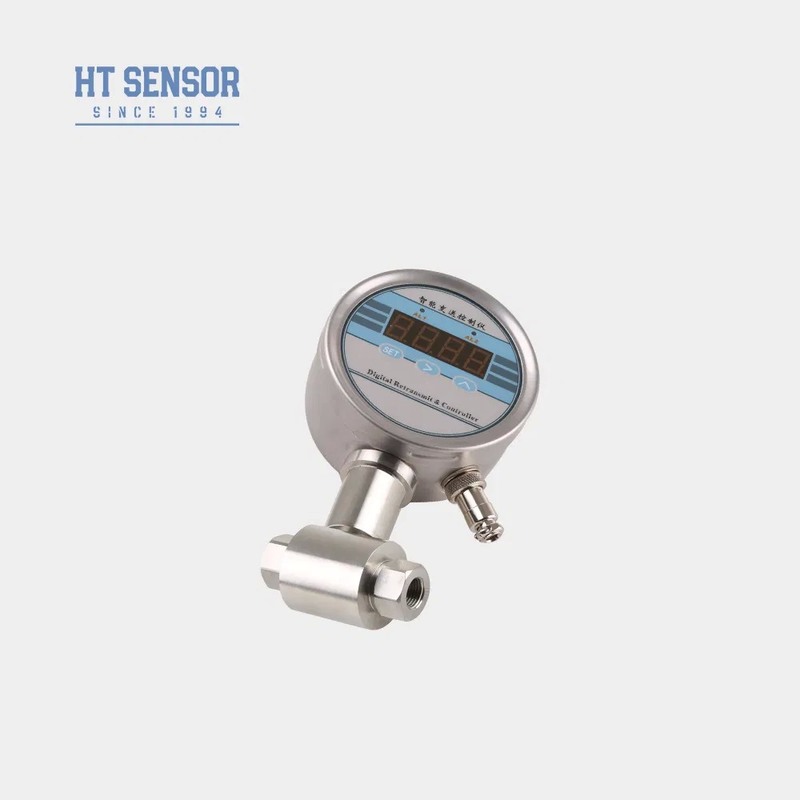

BPK-ZK01-D digital differential pressure gauge  is an all-digital
measurement and control product that integrates pressure/differential pressure measurement, display, point control, and transmission output. It can be directly installed at the pressure measurement point on the site or mounted on the control panel of a test bench. It allows on-site setting of various parameters such as zero value, full scale value, and contact pressure value using the keypad.
100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 0

Product  Features:
  1. Stainless steel structural design with versatile pressure interface options.
  2.  with high-brightness LED pressure display.
  3. Powered  24VDC and 220VAC
  4. Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
  5. High accuracy.

Applications:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.

Performance Parameters
Measurement Range 0-10KPa~2MPa(Differential Pressure)
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.3%F.S/year
Zero Point Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Relay Control 1-4 channels of control or electronic switch quantity control
Contact Life Exceeds 100,000 cycles
Display Range -1999~9999
Installation Method vertical axis installation
Explosion-proof Rating Intrinsically Safe
Protection Rating IP65
Weight ~0.8kg
Outline Construction
Dimension 100mm BPZK01 Differential Pressure Switch for Two Pressure Test 4-20mA Level Gauge Switch 1
Output Signal Supply Voltage Output Type
4~20mA / 0-20mA 24VDC or 220VAC 3 wire
1-5VDC /0-5VDC 24VDC or 220VAC 3 wire

Ordering tips

1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
