BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge

BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge
BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge
Informacion basica
Cantidad de orden mínima: 1
Precio: 80
Mejor precio Contactar ahora
Información detallada
Modelo No.: BPZ2008 Rango de medición: Medidor de baja presión
Tipo: Medidor de presión general Exactitud: 0.25
Mostrar: Digital Aplicación: Industrial
Estructura: Medidor de presión de la columna de fluido Tipo de conexión: Hilo
Función: Tipo de indicación local, controlada por señal eléctrica Estructura de instalación: Montaje directo
Características del medio de medición: Medidor de presión general Indicando referencia de presión: Medidor de presión diferencial
Fuerza: Batería de 9 V Material de concha: 304S.S y plástico
Hilo: G1/2 y así sucesivamente Valor de la exhibición: Presión
Paquete de transporte: caja de cartón Especificación: 10kpa~100Mpa
Marca: - ¿ Qué es esto? Origen: Porcelana
Código Hs: 80328100 Capacidad de producción: 50000 PCS/año
Resaltar:

BPZ2008 differential pressure transmitter

,

9V battery powered pressure gauge

,

pressure transmitter sensor with warranty

Descripción de producto


BPZ2008 DifferentiaL Pressure Transmitter Gauge Within 9V battery Powered
BPZ2008 Differential Pressure Transmitter gauge

Introduction:

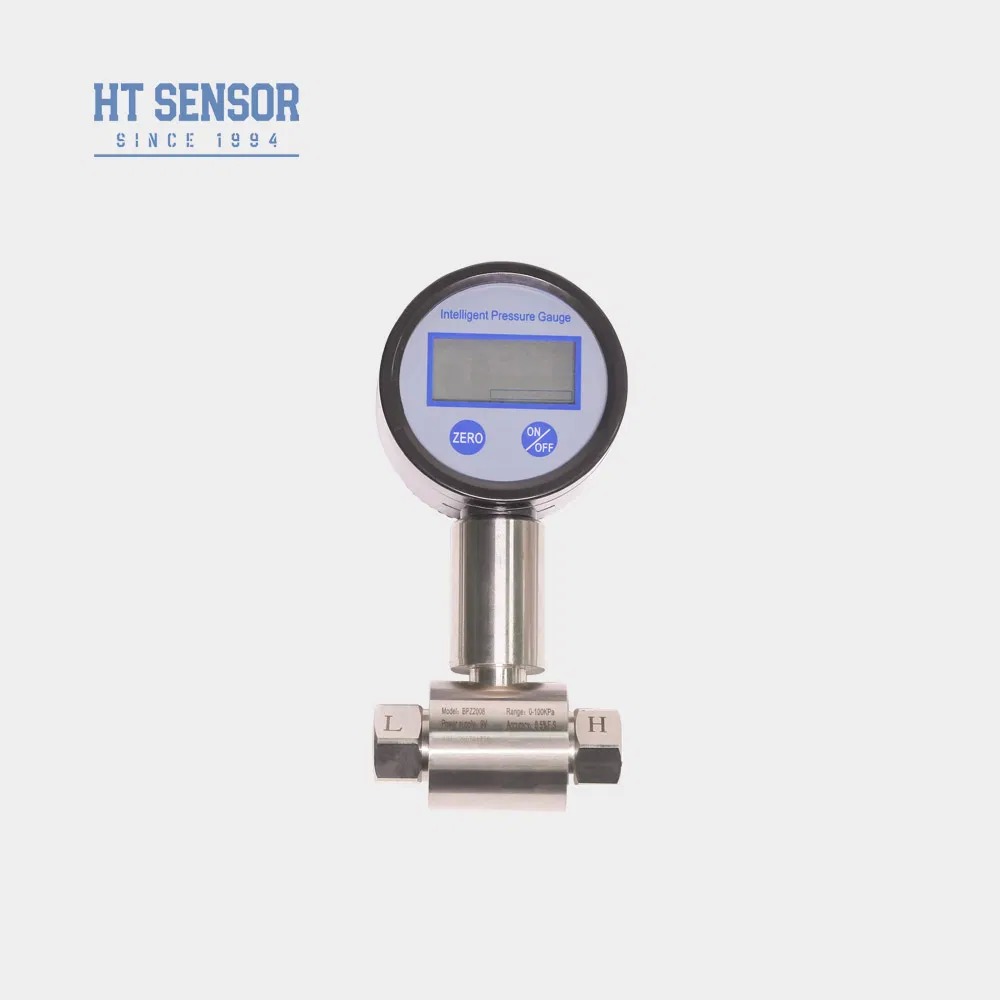

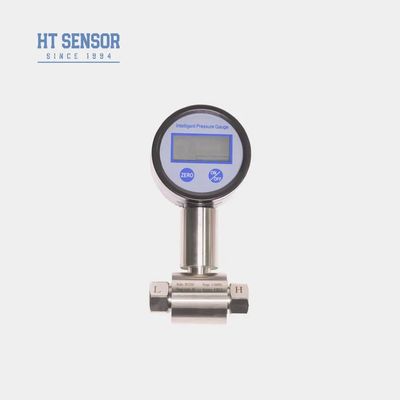

The BPZ2008 digital differential pressure gauge is a moisture-proof gauge with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes a piezoresistive diffused silicon sensor and integrated circuit design, housed in a rust-resistant iron casing. The gauge features a 5-digit LCD display and offers high reliability and stability.
BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 0
Product  Features:
  1. 5-digit LCD display
  2. Powered by a 9V battery
  3. Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
  4. Peak hold and continuous reading functions
Applications:
Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications.

Performance Parameters
Measurement Range 0-10KPa...~4MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static pressure The minimum value between 5 times the rated range or 7 MPa
Power Supply 9V alkaline battery.
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Point Temperature Drift ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -1ºC~49ºC
Storage Temperature -40ºC~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material ABS,1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
Weight ~0.45kg
Outline Construction
Dimension BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 1

Ordering tips
  1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
  2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
  3. . During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
  4. . The 9V alkaline battery is not included in the product package. Please purchase it separately.
  5.  For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order.
