Modelo NO.:	Ht-IQ	Para:	Transmisor de presión de silicio difuso
Tipo de señal de salida:	Tipo analógico	proceso de producción:	Integración
Material:	Acero inoxidable	Tipo de hilo:	No
Tipo de cableado:	Cuatro alambres	Medio de medición:	Gas y líquido
Clasificación IP:	IP65	Personalizado:	Personalizado
Fuerza:	1,5 mA/10 VCC	Producción:	señal del milivoltio
Conexión:	abrazadera 50.4	Compensación de temperatura:	0-70
Paquete de transporte:	caja de cartón	Especificación:	50.4 mm
Marca:	- ¿ Qué es esto?	Origen:	Porcelana
Código HS:	9026209090	Capacidad de producción:	50000 PCS/año
Resaltar:	316L stainless steel pressure sensor , piezoresistive silicon pressure transducer , OEM pressure transmitter sensor

Descripción de producto

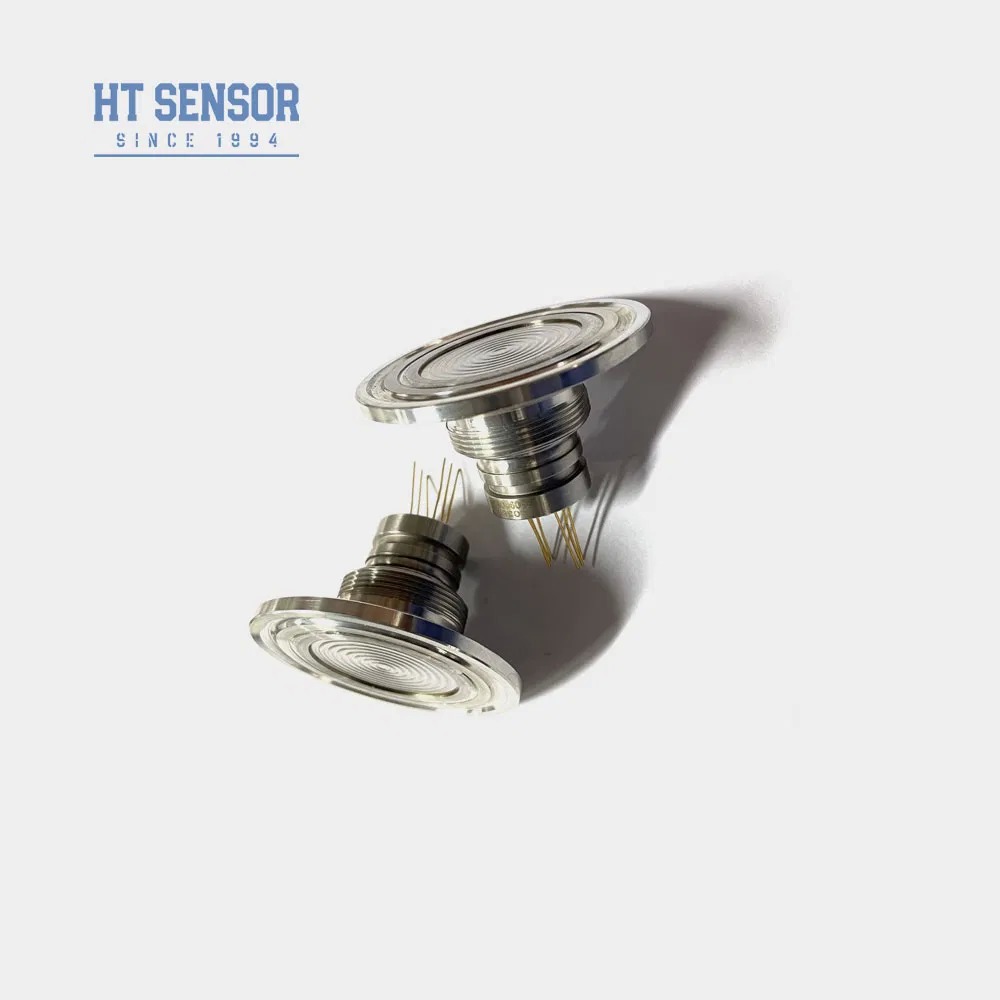

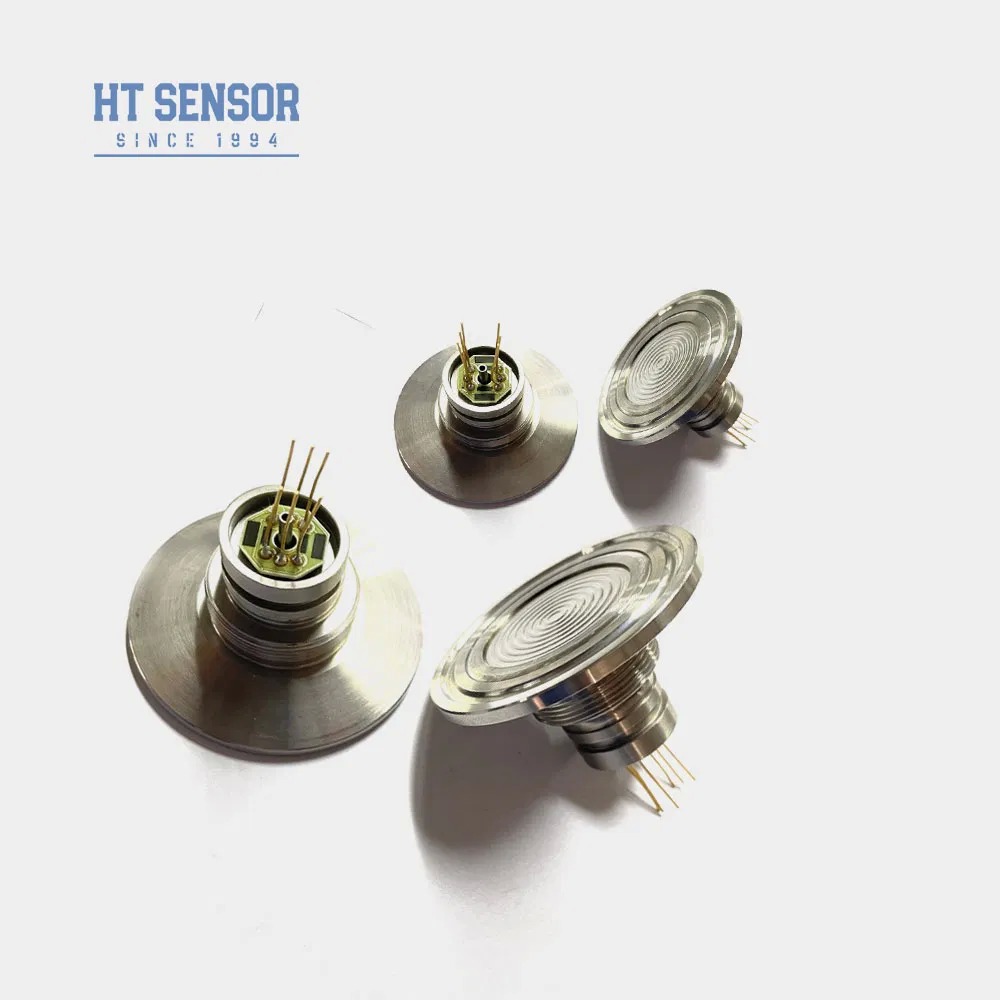

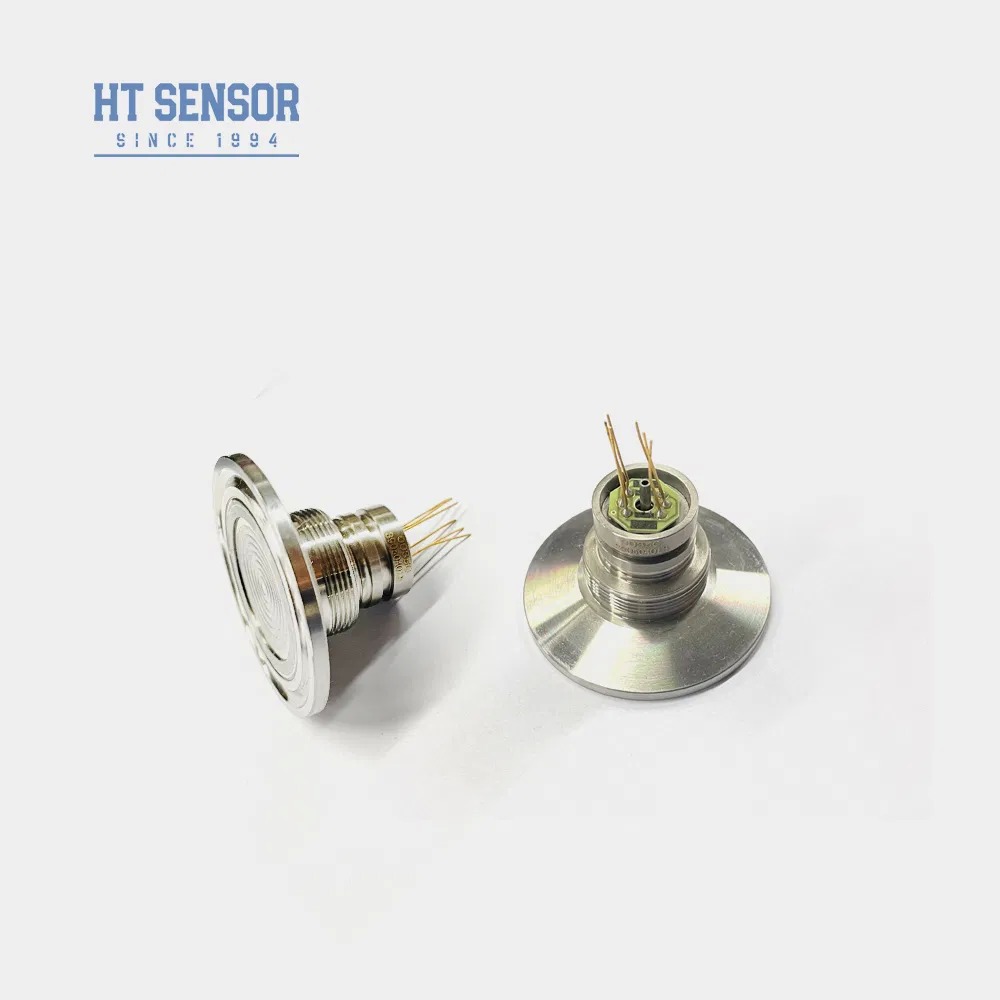

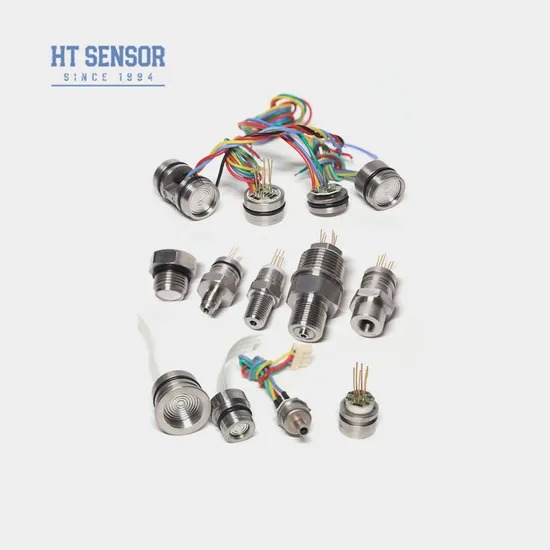

Diaphragm Piezoresistive Pressure Sensor Diffused Silicon Sanitary Pressure Transducer

HT-IQ Silicon Piezoresistive Pressure Sensor

Introduction:
HT-IQ is a flush diaphragm pressure sensor with a highly stable diffused silicon chip. The pressure is transmitted to the sensitive chip through a stainless steel diaphragmand sealed silicon oil. The sensitive chip does not directly contact the measured medium. This product features a flat diaphragm structure, making it easy to clean and highly reliable. It is suitable for applications in industries such as food and hygiene.

Product Features:

Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
Employing thick-film circuits for temperature compensation and zero-point correction
outstanding reliability, repeatability, and stability
Flush diaphragm structure, which makes it easy to clean

Applications:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Food and beverage industry
Industrial process control
Pharmaceutical industry

Electrical performance:

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance : 2.5KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.

Performance Parameters:
Measurement Range		Gauge(G)	35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±10		50±30	mV
	≥35kPa	100±10		100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~150g
The parameters are tested under the following conditions: 1.5mA @25°C

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

Q&A

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
